Factory Direct Conveyor Belt Sidewalls for Mining and Aggregate Industries

Tianjin Shunnai Conveyor Belt Manufacturing Co., Ltd., headquartered in Tianjin, China, is a professional manufacturer specializing in bulk material conveying accessories and customized belt solutions. With advanced welding equipment, automated production capabilities, and experienced technical teams, we develop and manufacture reliable conveyor belt sidewalls for industries requiring higher conveying angles and improved material retention.

By combining material expertise with flexible fabrication capabilities, we provide standard and reinforced solutions designed for different conveying conditions. Our products help customers improve transport efficiency, reduce material loss, and achieve more stable operation in demanding bulk handling environments.

Improving Material Retention in Inclined Conveying Systems

Conveyor Belt Sidewalls are vertical corrugated accessories installed along both edges of conveyor belts. Their primary function is to create containment barriers that prevent bulk materials from falling or leaking during transportation, especially in inclined conveying applications.

These side structures are commonly combined with cleats to create a bucket-style conveying surface. This combination increases the effective carrying capacity of the belt and allows materials to be transported at steeper angles while maintaining stable movement.

Different Designs for Various Material Handling Conditions

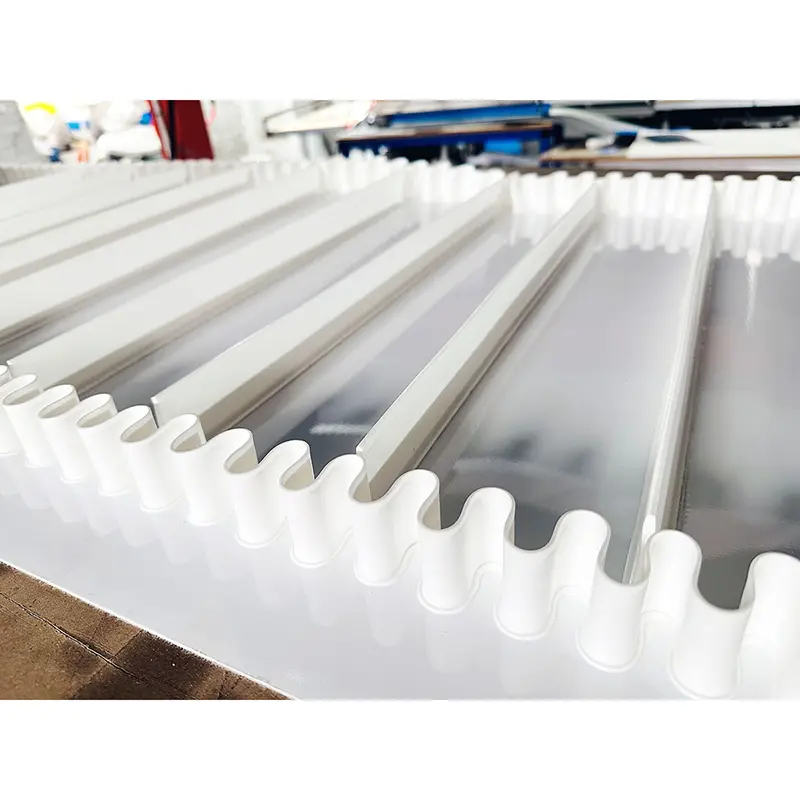

Standard Corrugated Structures

Standard sidewalls are manufactured from flexible PVC, PU, and other compatible materials. They provide reliable material containment for general applications with moderate conveying angles, offering good flexibility, easy installation, and stable performance.

Reinforced Corrugated Structures

Reinforced designs feature increased thickness or additional structural support to improve strength and impact resistance. They are suitable for applications involving heavier materials, higher throughput, stronger lateral pressure, or more demanding operating environments.

Advantages of Our Belt Containment Solutions

Effective Material Protection: Vertical structures on both sides of the belt reduce material overflow and improve conveying stability, especially when transporting loose or granular products.

Compatible with Incline Conveying: Combined with cleats, the structure creates a deeper carrying area that supports high-angle conveying requirements.

Material Matching Capability: Products can be manufactured using PVC, PU, and other materials that match the belt base, ensuring strong bonding performance and long service life.

Flexible Height Selection: Different heights and thicknesses can be selected according to material characteristics, conveying angle, and capacity requirements.

Food-Grade Options: FDA and EU food-compliant materials are available for applications requiring strict hygiene and safety standards.

Industrial Applications

Food Processing and Agricultural Products

Used for conveying grain, beans, nuts, confectionery products, and other bulk materials where clean operation and effective material control are required. Food-grade materials are available for hygienic production environments.

Mining and Building Materials

Applied in sand, gravel, cement, aggregates, and other heavy bulk material handling systems. Reinforced designs provide improved durability under higher loads and abrasive conditions.

Chemical and Fertilizer Industries

Suitable for powder and granular material transportation where preventing leakage and maintaining stable conveying performance are important.

Logistics and Bulk Handling Systems

Used in inclined transportation equipment for bulk packages and materials, helping improve loading efficiency and reduce product loss during movement.

Frequently Asked Questions

What is the difference between side structures and cleats?

Side structures are installed along the belt edges to prevent materials from spilling sideways, while cleats are installed across the belt surface to prevent materials from sliding downward. In many applications, both components work together to create a more efficient inclined conveying system.

When should reinforced designs be selected?

Reinforced options are recommended for applications involving higher conveying angles, heavier materials, increased throughput, frequent impact, or stronger material pressure against the belt edges. They provide improved structural strength and durability.

How do I choose the correct height?

Height selection depends on material size, loading capacity, conveying angle, and required containment level. Small particles usually require lower profiles, while larger bulk materials or higher filling rates require taller structures.

Can these accessories be added to existing conveyor belts?

Yes. We provide retrofitting services for existing belts. Before installation, the belt surface condition, edge area, and operating parameters should be evaluated to ensure proper bonding and reliable performance.

Can you manufacture customized solutions?

Yes. Tianjin Shunnai provides customized manufacturing based on customer drawings, samples, and application requirements. Height, thickness, material, corrugation style, and color can be adjusted to meet different conveying conditions.

Our Commitment

Tianjin Shunnai Conveyor Belt Manufacturing Co., Ltd. integrates product development, manufacturing, and technical support under an ISO 9001 certified quality management system. From material selection and production control to customized processing and after-sales service, we provide complete support throughout the cooperation process.

Our Conveyor Belt Sidewalls are supplied to customers across North America, Western Europe, Oceania, South America, Southeast Asia, the Middle East, and other global markets. Whether you require standard accessories or customized solutions for special conveying applications, Shunnai delivers reliable products and professional service for modern material handling systems.
