PU PVC Conveyor Belt with Trapezoidal Tracking Guide

SHUNNAI PU PVC Conveyor Belt with Trapezoidal Tracking Guide is designed to provide stable belt alignment for high-speed, inclined, curved and precision conveying applications. By integrating a specially designed trapezoidal tracking guide into the belt structure, the conveyor achieves more reliable positioning performance compared with traditional flat belts or ordinary guide profiles.

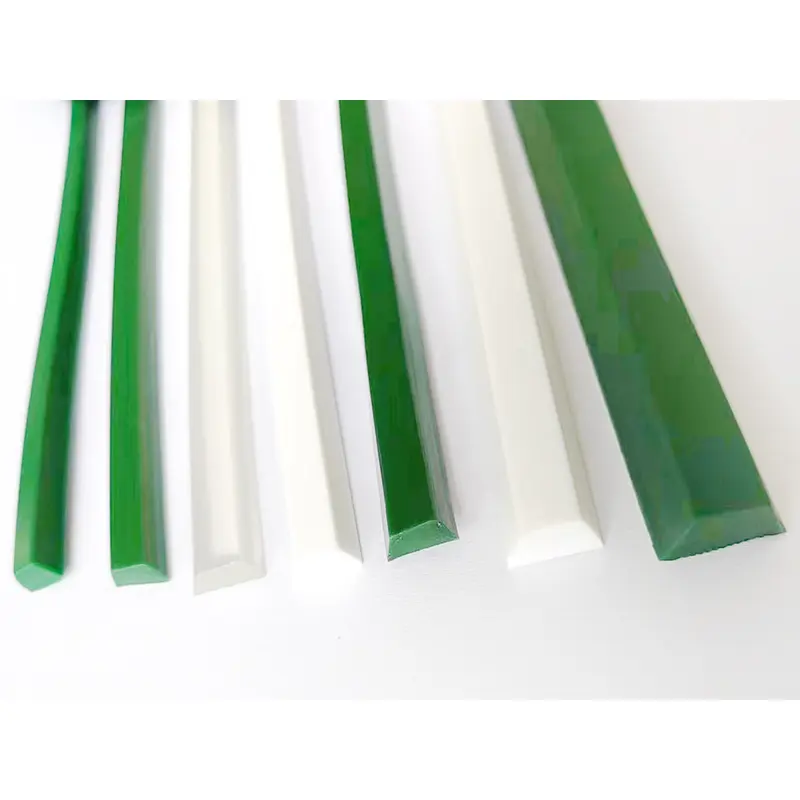

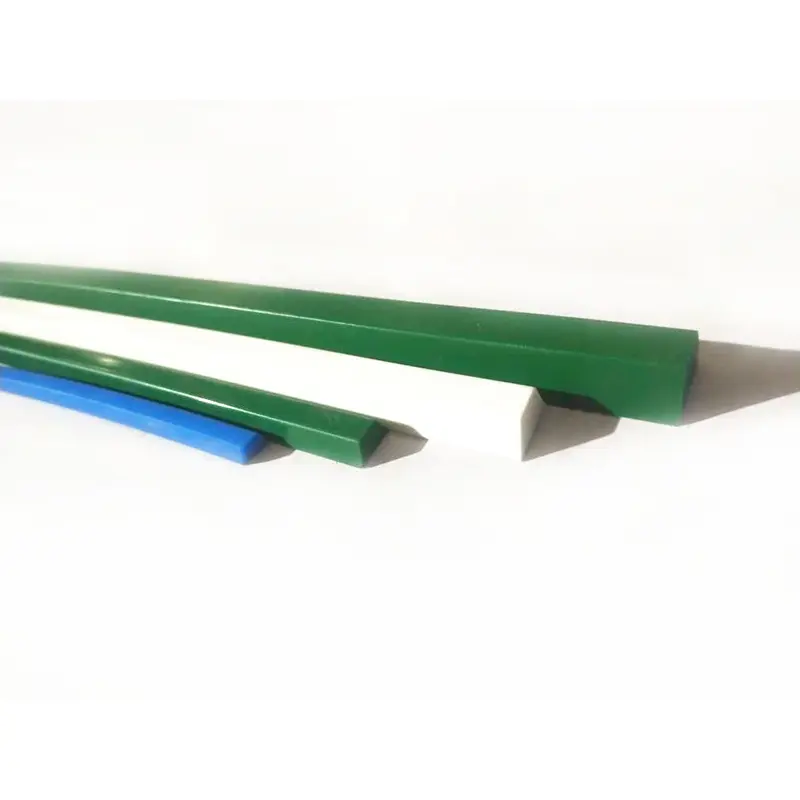

The trapezoidal guide features a narrow upper section and a wider bottom base. When installed into the conveyor guide channel, the structure creates a stronger mechanical locking effect. The wider base increases the bonding area, distributes stress more evenly and reduces the possibility of guide separation during long-term operation. Manufactured from food-grade PU or corrosion-resistant PVC materials, SHUNNAI conveyor belts provide stable performance in food processing, packaging, logistics, electronics and industrial automation applications.

Solving Belt Alignment Problems in Continuous Conveying

Why Conveyor Belts Move Off Center

Conveyor belt deviation is usually caused by multiple factors working together. Incorrect material loading, uneven tension distribution, pulley alignment errors, belt stretching and side forces during conveying can gradually push the belt away from the center line.

For automated production equipment, frequent manual adjustment is inefficient and increases maintenance costs. A stable tracking system helps reduce these interruptions by keeping the belt running in the correct position throughout continuous operation.

Stable Guidance for Different Operating Conditions

SHUNNAI PU PVC Conveyor Belt with Trapezoidal Tracking Guide provides additional positioning support through the guide structure. The guide works together with the conveyor groove to control lateral movement, making it suitable for systems where accurate belt movement is required.

This design is especially effective for conveyors exposed to changing loads, inclined conveying angles, curved running paths and high-speed operation environments.

Trapezoidal Guide Structure Design

Mechanical Locking Performance

The trapezoidal cross-section is designed with a wider bottom and narrower top. Compared with conventional square guides that mainly depend on side contact and adhesive strength, the trapezoidal structure provides additional mechanical support after installation.

When lateral force occurs during belt operation, the inclined surfaces of the trapezoidal guide create stronger contact pressure against the guide channel. This helps prevent the guide from moving outward, turning over or becoming loose after long-term use.

Larger Bonding Area for Better Reliability

A wider guide base provides a larger connection surface between the guide and belt body. This improves stress distribution and reduces concentrated force on the bonding layer.

For customers operating conveyors continuously, this structure helps extend service life and reduce maintenance caused by guide detachment or belt tracking adjustment.

Manufacturing Process and Bonding Technology

Heat Fusion Process for PU and PVC Belts

For PU and PVC conveyor belts, SHUNNAI uses professional heat fusion technology to connect the trapezoidal guide with the belt body. During production, the contact surfaces are heated and pressed together to create a strong integrated connection.

The smooth transition between belt and guide reduces interference during operation and helps maintain stable movement inside the conveyor system.

Integral Vulcanization for Heavy-Duty Applications

For heavy industrial applications requiring higher impact resistance, integral vulcanization technology is available. The guide is positioned during the vulcanization process, allowing the belt and guide to form a durable connection through high temperature and pressure.

This method is suitable for demanding environments where the conveyor operates under continuous load, vibration or harsh working conditions.

Material Selection According to Working Environment

Food Grade PU Tracking Guide

Food processing industries require conveyor materials that combine hygiene, durability and chemical resistance. SHUNNAI food-grade PU tracking guides feature smooth surfaces, good wear resistance, oil resistance and hydrolysis resistance.

With FDA certification support, PU solutions are suitable for food washing lines, bakery production, seafood processing, pharmaceutical and other applications requiring safe material performance.

PVC Tracking Guide for General Industrial Use

PVC tracking guides provide a practical solution for general industrial conveying applications. They offer good flexibility, corrosion resistance and cost efficiency.

PVC options are suitable for packaging lines, electronic assembly, light industrial conveying and environments without extreme temperature or chemical requirements.

Customized Configuration for Different Conveyors

Guide Dimensions Based on Equipment Requirements

Different conveyor structures require different guide specifications. SHUNNAI provides customized solutions according to belt width, belt thickness, conveyor design and operating conditions.

Customers can specify guide width, height, length, installation position and belt material. The technical team evaluates application requirements and recommends a suitable configuration.

Single and Double Guide Options

Single-center guides are commonly used for standard conveyor systems requiring basic alignment control. For wider belts, high-speed conveyors or precision sorting equipment, dual symmetrical guides can provide improved balance and tracking accuracy.

Applications in Different Industries

Food Processing and Washdown Conveying

Food production lines often require conveyors to operate under frequent cleaning, moisture exposure and strict hygiene requirements. SHUNNAI PU PVC Conveyor Belt with Trapezoidal Tracking Guide provides stable running performance for fruit and vegetable washing, seafood processing, bakery cooling lines and other food handling applications.

The PU material option offers good resistance to water, oil and repeated cleaning processes, helping maintain belt positioning during daily production and reducing adjustment frequency caused by belt movement.

Packaging and Automated Assembly Lines

In packaging systems and automated assembly equipment, accurate product positioning is important for stable production efficiency. The trapezoidal guide structure helps maintain belt alignment during continuous transportation, supporting applications such as packaging machines, electronic assembly lines and inspection conveyors.

By reducing lateral belt movement, the conveyor system can achieve more consistent material transfer and improve the reliability of automated processes.

Incline and Curved Conveyor Systems

Inclined and curved conveyors usually experience higher lateral forces compared with straight horizontal conveyors. Gravity, turning force and uneven material distribution can increase the risk of belt deviation.

The integrated guide structure provides additional tracking support for 90°/180° curve conveyors, incline elevators and lifting systems, helping maintain stable operation under changing conveying conditions.

Heavy Industrial Material Handling

For industrial applications involving continuous operation and heavier loads, conveyor reliability is a key requirement. SHUNNAI provides reinforced tracking guide solutions for applications including building materials, rubber processing, industrial sorting and other demanding conveying environments.

The combination of suitable belt materials, reliable guide attachment and customized structure helps improve long-term operational stability.

Field Application Examples

Improved Stability in Parcel Sorting System

A large parcel sorting center: Cross-belt sorter belt frequently mis-tracked, causing scanning errors. After switching to SHUNNAI double trapezoidal guides, zero offset after six months – sorting accuracy improved. Maintenance staff: “We used to adjust twice per shift; now we don’t touch it for a week.”

Reliable Performance in Bakery Cooling Line

A bakery: Cooling line incline belt ran to one side, dropping bread. After adding SHUNNAI PU trapezoidal guides, the belt stayed centered. Water- and oil-resistant – daily high-pressure washdown did not cause debonding.

Quality Control Before Shipment

Inspection During Production

SHUNNAI focuses on consistent product quality through controlled manufacturing procedures. Before shipment, each conveyor belt undergoes inspection including material verification, dimensional measurement, guide positioning inspection, bonding strength evaluation and appearance checking.

These procedures help ensure that every PU PVC Conveyor Belt with Trapezoidal Tracking Guide delivered to customers meets requirements for stable operation and long service life.

Certified Manufacturing System

Tianjin Shunnai Conveyor Belt Manufacturing Co., Ltd. follows GB/T 19001-2016/ISO 9001:2015 quality management standards. The company also provides products supported by FDA, MA and CNAS certifications according to different application requirements.

Through continuous improvement of material control, production technology and inspection procedures, SHUNNAI provides reliable conveyor belt solutions for global industrial customers.

Key Reasons Customers Choose SHUNNAI

Stable Tracking Without Frequent Adjustment

The trapezoidal guide design improves belt positioning accuracy and reduces the need for repeated manual correction. This helps customers maintain more stable production efficiency and lower maintenance workload.

Reliable Guide Attachment Technology

Through heat fusion and vulcanization processes, SHUNNAI strengthens the connection between guide and belt body. The integrated structure reduces the risk of guide movement during long-term operation.

Flexible Solutions for Different Industries

From food-grade PU belts to industrial PVC solutions, SHUNNAI provides different material options according to working conditions, including moisture, oil exposure, temperature changes and load requirements.

Professional Customization Support

SHUNNAI supports customized belt width, thickness, guide size and installation design. Customers can provide equipment drawings or application details, and the technical team will recommend a suitable conveyor solution.

Why Choose Tianjin Shunnai Trapezoidal Tracking Guide Conveyor Belt?

With more than 20 years of experience in industrial conveyor belts, Tianjin Shunnai Conveyor Belt Manufacturing Co., Ltd. integrates research and development, production and sales to provide customized conveyor solutions for global customers.

SHUNNAI focuses on solving practical conveyor challenges including belt deviation, guide attachment reliability and long-term operating stability. Through advanced manufacturing processes, strict quality inspection and professional technical support, SHUNNAI helps customers improve conveyor performance in food processing, logistics, packaging, electronics and industrial automation applications.

If you are facing problems such as frequent belt adjustment, tracking instability or guide detachment, provide your conveyor specifications and operating conditions to SHUNNAI. The engineering team can recommend a suitable PU PVC Conveyor Belt with Trapezoidal Tracking Guide solution based on your equipment requirements.

FAQ

What problems can a PU PVC Conveyor Belt with Trapezoidal Tracking Guide solve?

A PU PVC Conveyor Belt with Trapezoidal Tracking Guide is designed to reduce belt deviation problems caused by uneven loading, tension differences, side pressure and long-term operation. It helps improve belt positioning accuracy, reduce edge wear and minimize production interruptions.

Why is the trapezoidal tracking guide more stable than a traditional square guide?

The trapezoidal guide has a wider bottom and narrower top structure, which creates stronger mechanical locking inside the guide channel. Compared with square guides that mainly rely on adhesive bonding, the trapezoidal design provides better resistance against lateral movement and separation.

Will the tracking guide detach from the conveyor belt during continuous operation?

SHUNNAI uses heat fusion bonding for PU/PVC belts and integral vulcanization for heavy-duty applications. These processes improve connection strength between the guide and belt body. Quality inspection is performed before delivery to ensure reliable performance.

Can SHUNNAI customize the guide dimensions?

Yes. SHUNNAI can customize guide width, height, length, position and material according to conveyor drawings and application requirements. Both single guide and double symmetrical guide structures are available.

Is this conveyor belt suitable for food processing applications?

Yes. SHUNNAI provides food-grade PU options with FDA certification. These belts are suitable for applications requiring hygiene performance, water resistance, oil resistance and frequent cleaning.

Can the trapezoidal tracking guide belt be used on incline conveyors?

Yes. The guide structure provides additional tracking support on inclined conveyors by reducing lateral movement caused by gravity and changing belt tension. It is commonly used in lifting systems and incline conveying equipment.

Can this belt be used for curved conveyors?

Yes. SHUNNAI trapezoidal tracking guide belts are suitable for 90° and 180° curved conveyor systems. The guide helps maintain belt positioning under centrifugal forces generated during turning operation.

What materials are available for the tracking guide?

SHUNNAI offers PU and PVC guide materials. PU is recommended for food processing, wet environments and applications requiring higher resistance to oil and hydrolysis. PVC is suitable for general industrial conveying with good flexibility and economical performance.

What certifications does SHUNNAI provide?

SHUNNAI operates under GB/T 19001-2016/ISO 9001:2015 quality management standards and provides products supported by FDA, MA and CNAS certifications according to customer application requirements.

How can I choose the right tracking guide conveyor belt for my machine?

Customers can provide belt width, thickness, conveyor structure, running speed, transported materials, temperature and working environment information. SHUNNAI engineers will evaluate the application and recommend a suitable belt and guide configuration.
