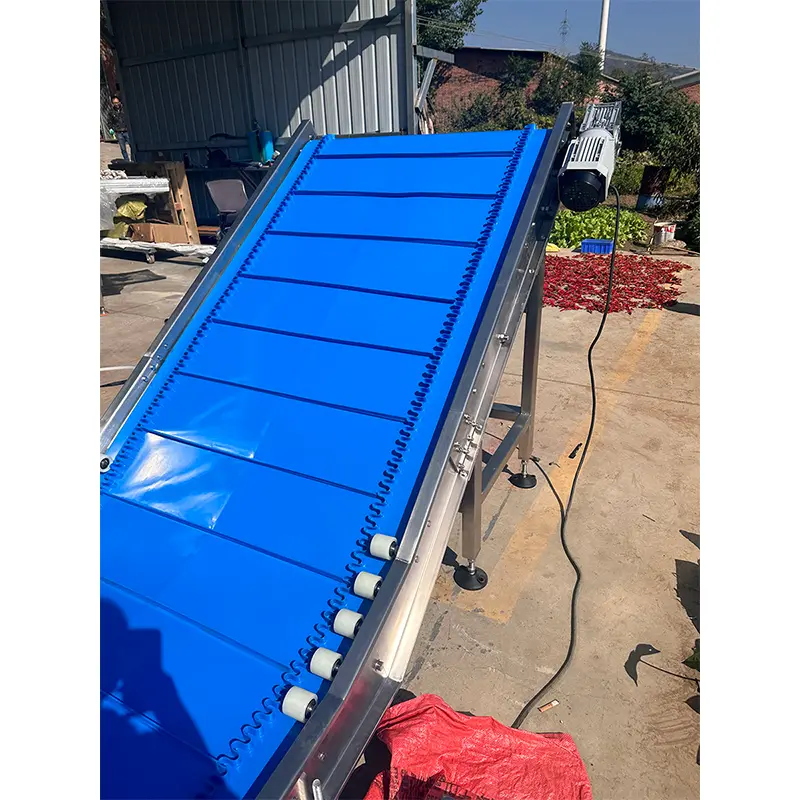

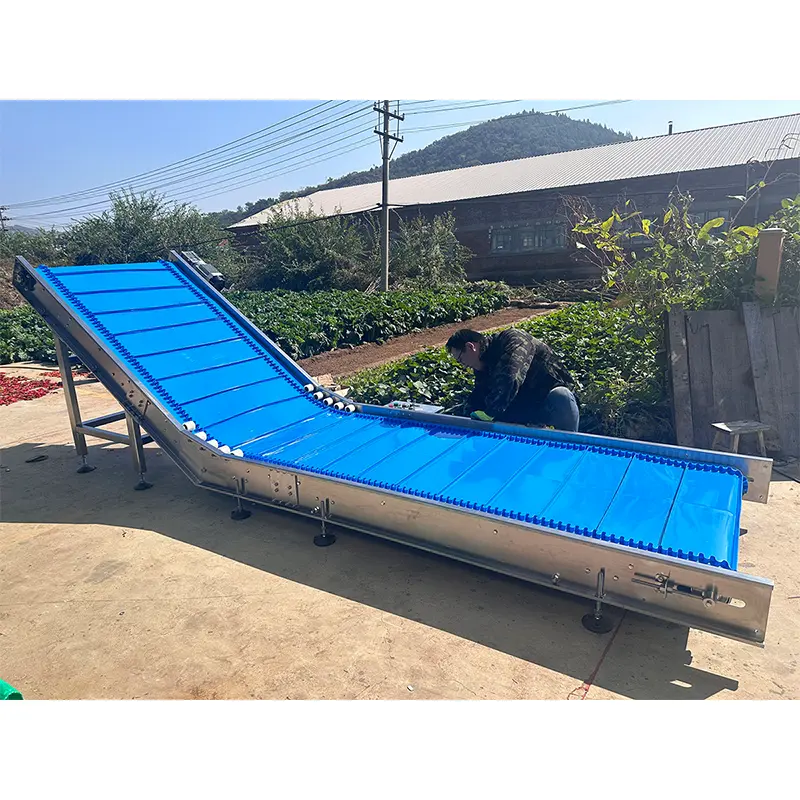

Corrugated Sidewall Belt Conveyor

With a complete quality management system certified by GB/T 19001-2016 / ISO 9001:2015, and supported by FDA, MA and CNAS related testing capabilities, SHUNNAI controls every production stage from structural design, steel fabrication, belt bonding, electrical assembly to final load testing. Each corrugated sidewall belt conveyor is tested for running stability, inclination performance, material retention and continuous operation before shipment.

Space-Saving Conveying Design

Vertical Layout

Many factories face limited production space when connecting different processing stages. Traditional horizontal conveyors require longer distances and larger installation areas. SHUNNAI designs inclined and vertical conveying systems that maximize available factory space by transferring materials upward within a compact footprint.

The corrugated sidewall structure allows materials to be lifted at steep angles while maintaining stable movement, helping customers simplify production layouts, reduce transfer points and improve overall line efficiency.

Flexible Installation

SHUNNAI conveyor systems can be customized according to factory conditions, including conveyor length, lifting height, inclination angle, belt width and feeding direction. Whether installed between production floors, connected with processing equipment or used for warehouse transfer, the system can be adapted to different project requirements.

Material Control Performance

Spillage Prevention

During inclined conveying, material loss is one of the biggest concerns for operators. Loose particles, powders and irregular products may fall from conventional flat belts, increasing cleaning work and reducing production efficiency.

SHUNNAI uses integrated corrugated sidewalls and transverse cleats to create a controlled conveying space. The sidewalls prevent lateral overflow, while cleats improve material holding capability during climbing operations, ensuring smoother transfer with reduced material loss.

Different Materials

The conveyor structure can be configured according to different materials and working environments. Food processing applications can use food-grade PU belts, while mining and building material industries can select wear-resistant belts for heavier loads. Silicone, PVC and chemical-resistant materials are also available for special conditions.

Engineering Reliability

Frame Structure

The conveyor frame is manufactured with heavy-duty carbon steel, stainless steel 304/316 or aluminum profiles according to application requirements. Precision welding and structural reinforcement improve load capacity and reduce deformation during long-term operation.

Running Stability

Stable tracking is essential for continuous conveying systems. SHUNNAI combines precision rollers, adjustable tension systems and optimized belt alignment structures to maintain smooth operation and reduce unexpected shutdown caused by belt deviation.

Product Comparison

Different conveying systems are suitable for different production conditions. Compared with traditional flat belt conveyors, bucket elevators and ordinary inclined conveyors, SHUNNAI corrugated sidewall belt conveyor provides better material retention, higher space utilization and more flexible installation options for steep-angle conveying applications.

Industrial Applications

SHUNNAI corrugated sidewall belt conveyor systems are widely used in food processing, grain handling, pharmaceutical production, chemical transportation, mining, building materials and logistics industries.

In food factories, they provide hygienic inclined transfer for snacks, vegetables, seasoning and packaged products. In grain and feed plants, they support continuous lifting of rice, corn and pellets. For mining and construction materials, reinforced structures provide reliable conveying of sand, aggregates and bulk materials.

Project Application Examples

Food Processing Line

A snack manufacturer needed to transfer packaged products between different production levels while reducing floor space. SHUNNAI customized an inclined conveyor with food-grade PU belt and adjustable cleats, improving material flow and reducing manual handling.

Grain Handling System

A grain processing plant required a lifting solution for continuous transportation of bulk materials. The customized sidewall conveyor improved conveying efficiency while reducing grain spillage during operation.

Building Material Transfer

A construction material company used SHUNNAI heavy-duty sidewall conveyor equipment for aggregate transportation. The reinforced frame and wear-resistant belt design helped maintain stable operation under high-load conditions.

Maintenance Benefits

SHUNNAI focuses not only on equipment performance but also on long-term operating costs. The modular design makes inspection and replacement easier, while reliable belt bonding and optimized transmission components reduce frequent maintenance requirements.

By improving conveying efficiency and reducing material loss, SHUNNAI helps customers lower cleaning workload, minimize downtime and achieve more stable production management.

FAQ

1. What materials can be conveyed by a corrugated sidewall belt conveyor?

SHUNNAI corrugated sidewall belt conveyors can transport powders, granules, blocks, food products, chemical materials, grain, aggregates and packaged goods. The belt material and structure can be selected according to product characteristics.

2. What is the maximum conveying angle of this conveyor?

The conveying angle can be customized from horizontal conveying to steep-angle lifting and vertical transfer according to equipment design, material condition and production requirements.

3. Can SHUNNAI customize the conveyor according to factory space?

Yes. SHUNNAI provides customized solutions including conveyor length, lifting height, belt width, sidewall height, cleat spacing, frame structure and installation direction based on customer site conditions.

4. How does the sidewall design prevent material falling?

The corrugated sidewalls create a closed conveying area, while transverse cleats improve material holding capability. This design helps reduce overflow and improves stability during inclined transportation.

5. What certifications does SHUNNAI have?

SHUNNAI operates under GB/T 19001-2016 / ISO 9001:2015 quality management standards and provides products supported by FDA, MA and CNAS certification and testing requirements according to different application industries.

6. How long is the service life of a SHUNNAI sidewall conveyor?

Service life depends on material type, working conditions, load capacity and maintenance practices. SHUNNAI selects suitable belt materials and structural designs to provide stable long-term operation in different industrial environments.

SHUNNAI Conveying Solutions

From compact factory layouts to heavy-duty industrial transportation, SHUNNAI provides complete corrugated sidewall belt conveyor solutions based on real production requirements. Through professional design, strict manufacturing control and customized engineering support, SHUNNAI helps global customers build efficient, stable and space-saving conveying systems.
