Grain Conveyor Belt

SHUNNAI is a professional grain conveyor belt manufacturer in China, integrating R&D, production and export service. With more than 15 years of conveyor belt manufacturing experience, SHUNNAI provides customized conveying solutions for grain processing industries, including wheat, corn, rice, soybean, seed and other agricultural products.

Manufactured with food-grade PU/PVC materials and high-strength polyester carcass, the belts are designed for grain receiving, cleaning, drying, storage and loading systems. SHUNNAI products comply with GB/T 19001-2016 / ISO 9001:2015 quality management system and provide FDA, MA and CNAS related certification support to meet international grain processing requirements.

What Is Grain Conveyor Belt?

Grain Conveyor Belt is a specialized conveying solution developed for continuous transportation of agricultural materials such as wheat, corn, rice and seeds. Compared with ordinary industrial belts, grain processing belts need to consider more factors including grain damage control, stable feeding speed, cleaning convenience and long-term operation in dusty environments.

In grain handling facilities, unstable conveying may cause problems such as broken kernels, uneven feeding, material accumulation and frequent shutdown for cleaning. SHUNNAI designs belt structures according to different grain processing stages, helping grain terminals, silos, flour mills and agricultural processing factories achieve smoother material flow and more reliable production efficiency.

Applications in Grain Processing

Receiving and Feeding System

At the grain receiving stage, large quantities of raw grain are transferred from trucks, unloading pits or storage equipment to cleaning lines. The conveyor belt needs to handle continuous loading impact while maintaining stable transportation speed.

SHUNNAI belts for grain receiving systems are designed with reinforced carcass structures and suitable surface friction, helping prevent grain scattering during transfer. The belt can be matched with horizontal conveyors, inclined conveyors and mobile grain handling equipment.

Cleaning and Sorting Line

Before storage or further processing, grains usually pass through cleaning machines, separators and sorting equipment. During this process, accurate material flow is important to avoid uneven feeding that affects equipment performance.

The smooth and stable running surface of SHUNNAI grain belts supports consistent material distribution. Different surface patterns can be selected according to grain size and conveying angle to improve transportation stability while reducing material accumulation.

Drying and Storage Conveying

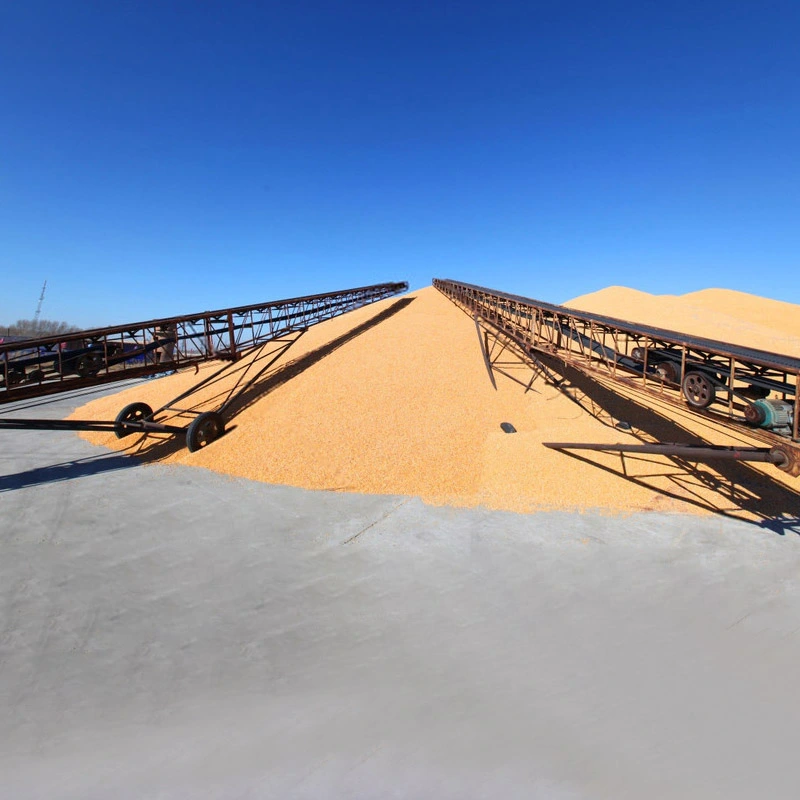

Grain drying and storage systems often require long-distance conveying under continuous working conditions. Belt stability becomes important because frequent adjustment or tracking problems may interrupt the entire storage process.

SHUNNAI provides belts with low elongation polyester carcass and reliable dimensional stability, suitable for grain dryers, warehouse transfer systems and silo loading equipment. The belt structure helps maintain smooth operation during repeated conveying cycles.

Belt Selection for Different Grain Materials

Wheat and Corn Conveying

Wheat and corn are common bulk grains requiring strong carrying capacity during transportation. For high-volume grain handling, SHUNNAI selects belt thickness, carcass strength and surface structure according to conveyor length, loading capacity and working speed.

The belt design supports continuous operation in grain elevators, feed mills and agricultural storage facilities where stable throughput is required.

Rice Processing Conveying

Rice processing requires careful handling because excessive impact or unstable feeding may increase broken grain rates. SHUNNAI offers smooth surface belt solutions for rice conveying applications, helping reduce unnecessary friction during transportation.

The belt can be customized for rice milling lines, polishing systems and finished rice packaging equipment according to machine dimensions.

Seed Transportation

Seeds require more controlled conveying conditions because they are sensitive to impact and surface abrasion. SHUNNAI provides softer surface options and precision belt structures for seed cleaning, grading and packaging applications.

These belts are suitable for agricultural seed companies, greenhouse production facilities and automated sorting systems where gentle material handling is required.

Structure Design for Grain Equipment

Surface Pattern Selection

The belt surface directly affects grain movement behavior. SHUNNAI provides different surface designs including smooth surface, fine texture and customized patterns according to grain type, conveying angle and equipment requirements.

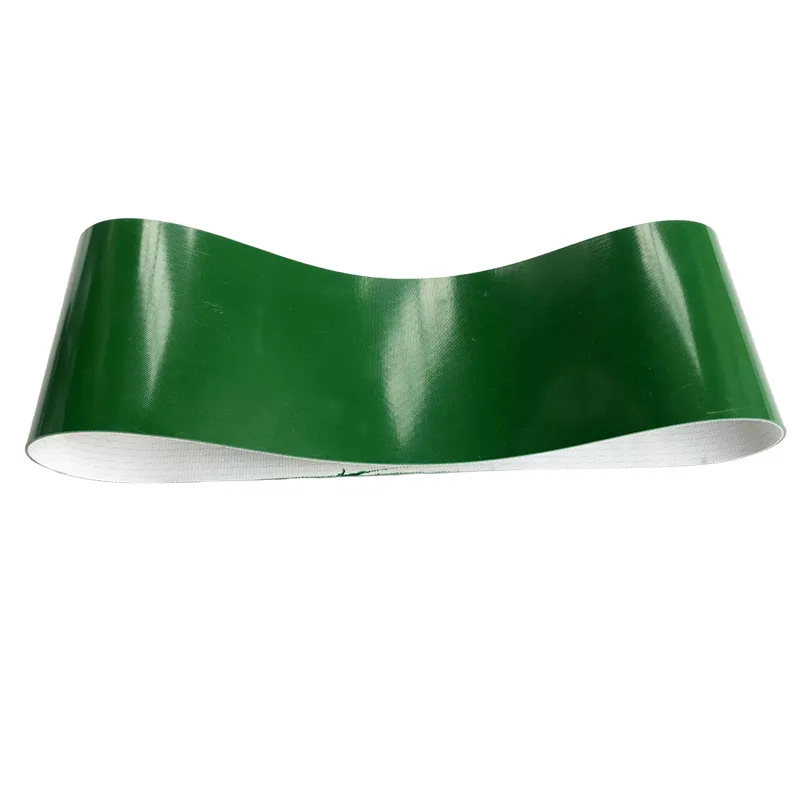

Smooth surfaces are commonly used for horizontal transportation and easy cleaning, while textured surfaces can provide additional grip for inclined conveying applications.

Edge and Guide Design

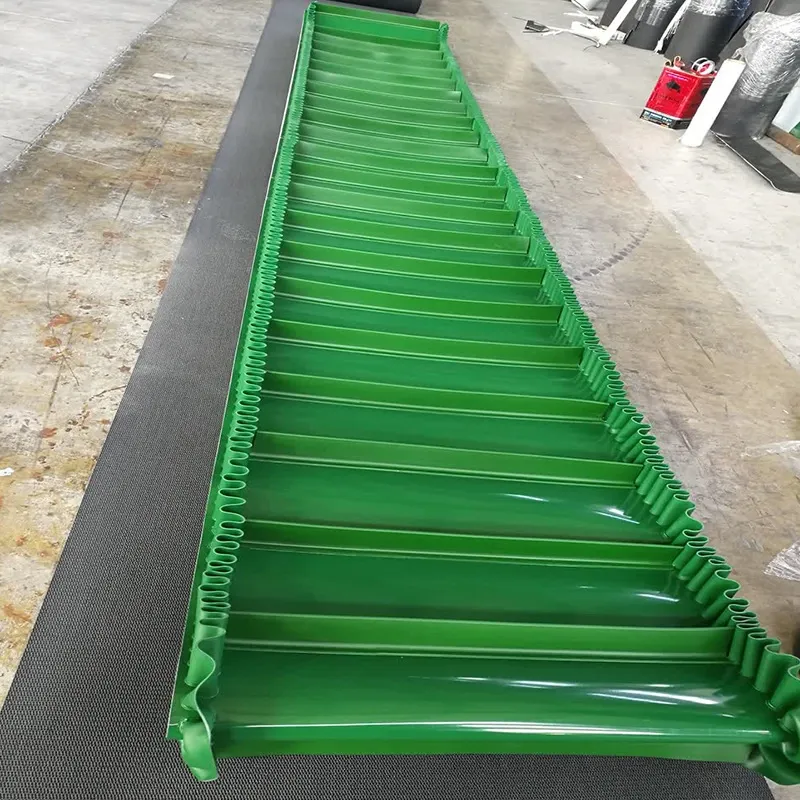

For grain processing lines with higher conveying accuracy requirements, SHUNNAI can add guide strips, sidewalls and special edge designs. These structures help control material position and reduce grain overflow during transportation.

The customized design is suitable for bucket feeding systems, sorting machines and compact grain processing equipment with limited installation space.

Splicing Method

Different grain conveyor systems require different installation methods. SHUNNAI supports endless heat fusion splicing for smooth operation, as well as mechanical fasteners for applications requiring quick replacement.

Engineers select suitable splice methods according to conveyor speed, working environment and maintenance requirements to ensure reliable operation.

Customization for Different Grain Conveying Systems

Grain processing equipment varies greatly between storage terminals, flour mills, rice factories and agricultural processing plants. SHUNNAI provides customized belt solutions according to conveyor structure, material characteristics and operating conditions.

Belt Dimension Adjustment

SHUNNAI supports customized belt width, length and thickness according to equipment drawings. Whether used for compact cleaning machines or large grain transfer conveyors, the belt can be manufactured to match existing conveyor dimensions.

Common customization includes belt width from narrow feeding conveyors to wide bulk grain transportation systems, helping customers replace existing belts without major equipment modification.

Pattern and Functional Design

According to different grain transportation requirements, SHUNNAI can provide smooth belts for easy cleaning, textured belts for inclined conveying and special surface structures for controlled material movement.

For applications requiring precise feeding, guide strips and sidewalls can be added to maintain grain positioning and prevent material falling during transportation.

Equipment Matching Service

SHUNNAI engineers evaluate conveyor speed, loading capacity, roller diameter, installation space and working environment before recommending suitable belt specifications.

The solution can be applied to grain elevators, silo conveying systems, cleaning machines, dryers, packaging lines and agricultural automation equipment.

Application Cases

Stable Conveying Solution for Grain Storage Facility

A grain storage company required a replacement belt for its long-distance wheat transportation line. The original belt frequently required tension adjustment due to elongation, affecting loading efficiency.

After installing SHUNNAI customized grain conveyor belt with reinforced polyester carcass, the conveying system achieved more stable operation. The maintenance frequency was reduced and the storage transfer process became smoother.

Low Damage Transportation for Rice Processing Factory

A rice processing plant needed a belt solution for finished rice transportation before packaging. The factory required a smooth conveying surface to reduce unnecessary friction and protect product appearance.

SHUNNAI supplied a customized smooth surface belt according to equipment dimensions. After installation, the belt ran quietly and continuously matched the existing packaging line.

Production Quality Control

To ensure stable performance in grain processing applications, SHUNNAI controls every production stage from raw material inspection to finished belt testing.

Material Inspection

All belt raw materials are checked before production, including polymer material quality, fabric strength and surface performance. Materials with unstable properties are rejected to ensure consistent product quality.

Manufacturing Process Control

During production, SHUNNAI monitors belt thickness, bonding strength, surface condition and dimensional accuracy. Each manufacturing process follows the requirements of GB/T 19001-2016 / ISO 9001:2015 quality management system.

Finished Product Testing

Before shipment, finished belts are inspected for length accuracy, joint quality, tensile performance and running stability. Testing records can be provided according to customer requirements.

Standards and Certificates

SHUNNAI follows international quality management requirements during production. The company operates according to GB/T 19001-2016 / ISO 9001:2015 quality system and provides certification support including FDA, MA and CNAS related documents according to application requirements.

For grain processing projects involving food-related material contact, SHUNNAI can provide supporting technical documents to help customers complete supplier evaluation and project approval.

Technical Specifications

Packing Specification

SHUNNAI supplies grain belts with professional export packaging. Finished belts are rolled according to belt size, protected with waterproof materials and fixed to prevent deformation during transportation.

For long-distance ocean shipment, the belt surface and joint area are specially protected to avoid moisture, impact and unnecessary damage during loading and unloading.

Storage recommendation: Keep belts in a dry and ventilated warehouse, avoid direct sunlight and prevent contact with sharp objects before installation.

FAQ

What grain materials can SHUNNAI conveyor belts handle?

SHUNNAI belts are suitable for various agricultural materials including wheat, corn, rice, soybean, seeds and other grain products. The belt structure can be adjusted according to material size, weight and conveying requirements.

Can the belt reduce grain damage during transportation?

Yes. For fragile grain applications, SHUNNAI can provide suitable surface materials and belt structures to reduce unnecessary impact and friction during conveying. The final solution depends on conveyor speed, loading method and material characteristics.

Are these belts suitable for grain storage silos?

Yes. SHUNNAI grain belts are commonly used in silo loading, unloading and internal transfer systems. Low elongation carcass structures help maintain stable operation for long-distance conveying.

Can SHUNNAI customize belts for existing equipment?

Yes. Customers can provide conveyor drawings, belt dimensions, working speed and material information. SHUNNAI engineers will recommend suitable belt specifications and splice solutions.

What information is needed for quotation?

Please provide belt width, belt length, conveyor application, grain type, operating temperature, conveyor speed, installation method and required quantity. SHUNNAI will provide a suitable quotation and technical recommendation.

Inquiry Parameters

For a fast quotation, please provide the following information:

Conveyor type, belt width, belt length, grain material type, conveying capacity, working temperature, conveyor speed, surface pattern requirement, splice method, destination port and order quantity.

SHUNNAI technical team will evaluate the application condition and recommend the most suitable grain conveying solution according to your equipment requirements.
